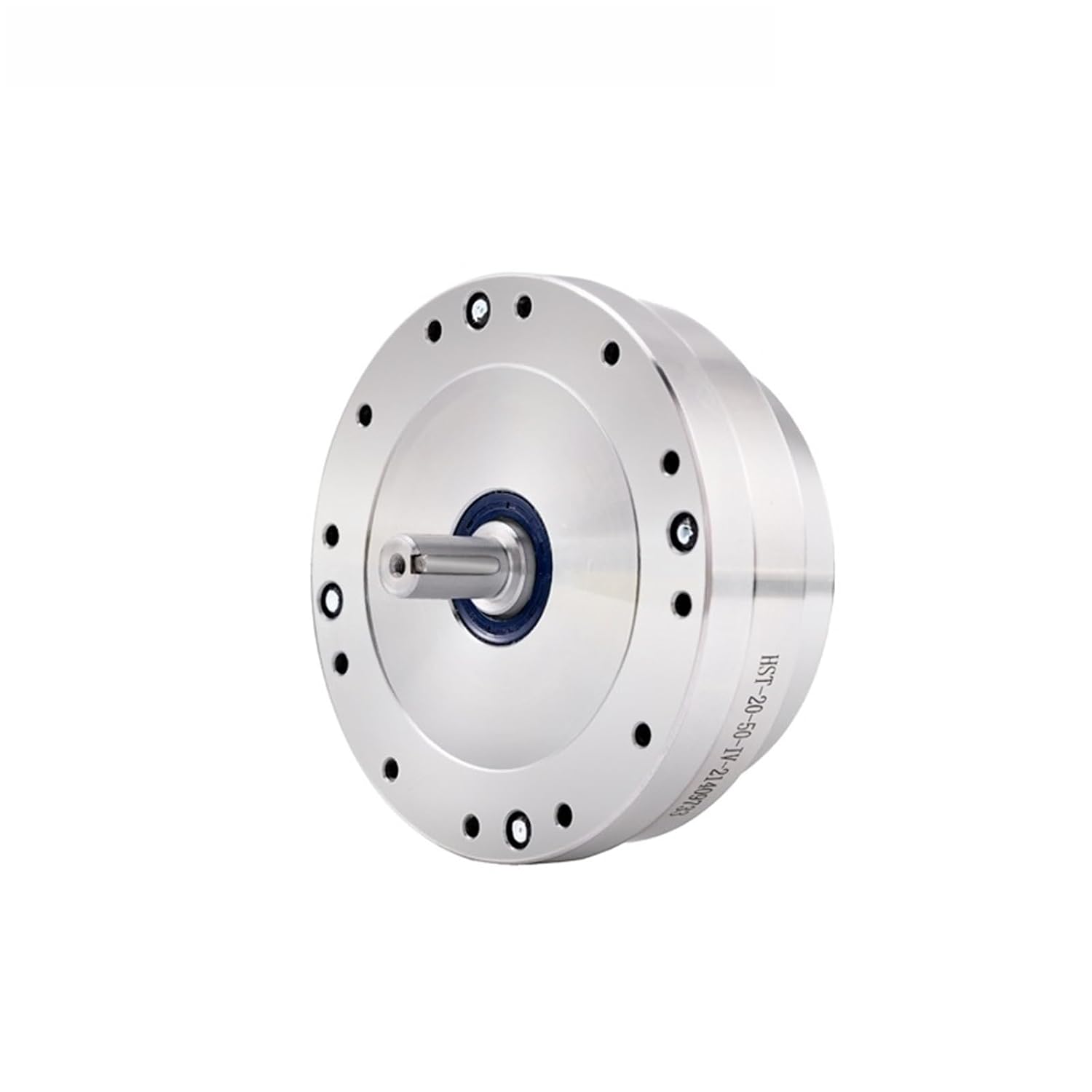

High-Precision Cylindrical Gear Reducer HST-32-100-IV Industrial Vertical Harmonic(HST-32-80-U-IV)

Rotary ShaftsGearboxes Gearheads & Speed ReducersNote Different product models have different appearance size and weight parameters K17-30Reduction ratio: 30Rated Tq when inputting 2000r/min: 8.8 Nm(0.9kgfm)Allowable peak Tq when starting and stopping: 16 Nm(1.6kgfm)Allowable maximum value of average load Tq: 12 Nm(1.2kgfm)Instantaneous maximum allowable Tq: 30 Nm(3.1kgfm)Allowable maximum input speed: 7300Allowable average input speed: 3500Backlash: 10 ArcsecK17-50Reduction ratio: 50Rated Tq when inputting 2000r/min: 21 Nm(2.1kgfm)Allowable peak Tq when starting and stopping: 44 Nm(4.5kgfm)Allowable maximum value of average load Tq: 34 Nm(3.4kgfm)Instantaneous maximum allowable Tq: 91 Nm(9kgfm)Allowable maximum input speed: 7300Allowable average input speed: 3500Backlash: 10 ArcsecK17-80Reduction ratio: 80Rated Tq when inputting 2000r/min: 29 Nm(2.9kgfm)Allowable peak Tq when starting and stopping: 56 Nm(5.7kgfm)Allowable maximum value of average load Tq:35 Nm(3.6kgfm)Instantaneous maximum allowable Tq: 113 Nm(12kgfm)Allowable maximum input speed: 7300Allowable average input speed: 3500Backlash: 10 ArcsecK17-100Reduction ratio: 100Rated Tq when inputting 2000r/min: 31 Nm(3.2kgfm)Allowable peak Tq when starting and stopping: 70 Nm(7.2kgfm)Allowable maximum value of average load Tq:51 Nm(5.2kgfm)Instantaneous maximum allowable Tq: 143 Nm(15kgfm)Allowable maximum input speed: 7300Allowable average input speed: 3500Backlash: 10 Arcsec
