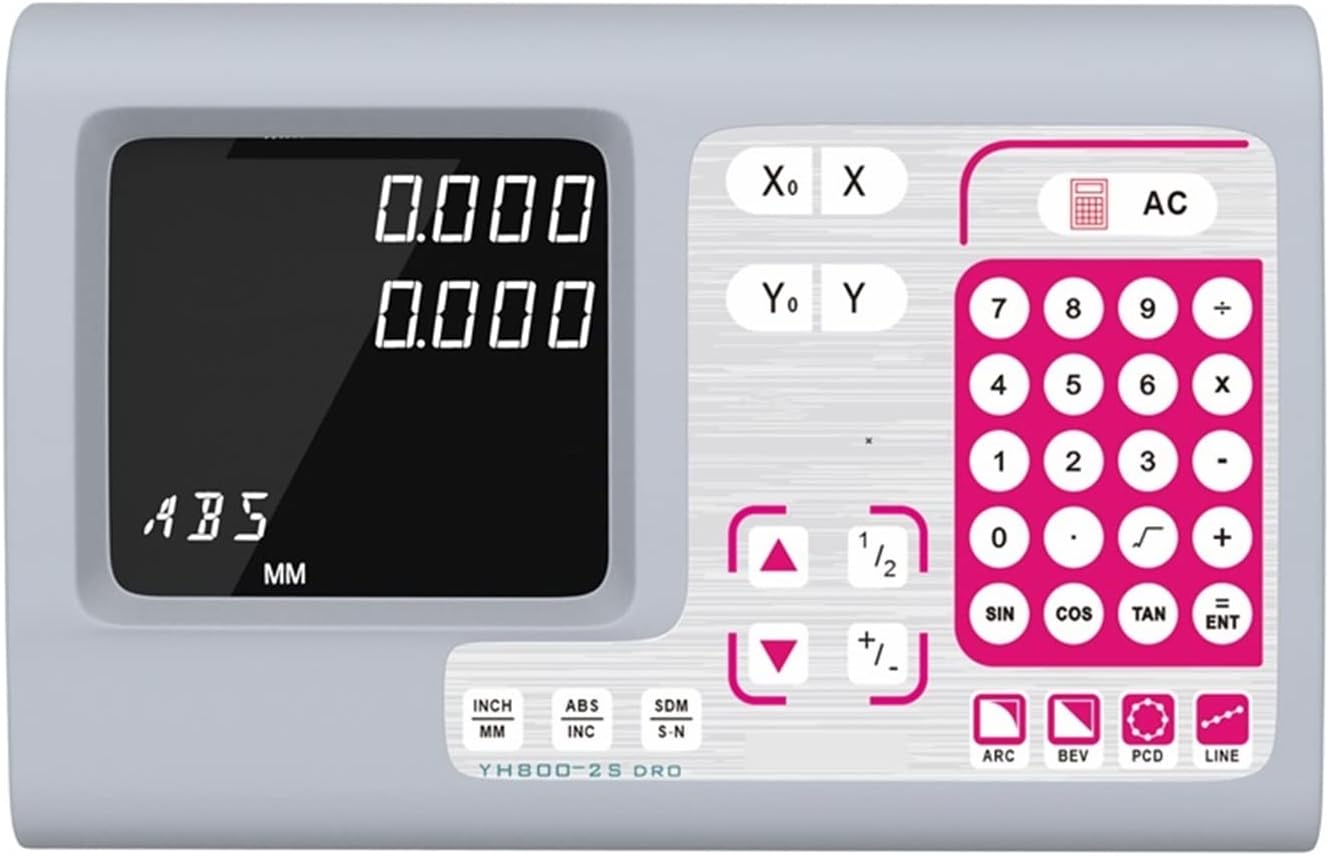

LIAMOS Digital Readout Set 5U Lathe Linear Glass Scales/Encoder/Sensor/Rulers 2PCS Dimensions 100MM to 1000MM,Precise Measurement(YH800-2S DRO Set)
Product details
| Management number | 228198830 | Release Date | 2026/05/31 | List Price | US$189.31 | Model Number | 228198830 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Complete Machine tool 2 Axis Digital Readout Dro Set/Kit and 2 PCS 5u Linear Glass Scales Linear Optical Ruler for Milling/LatheFunctions1:Zero clearing 2:Reset 3:mm/inch mode 4:ABS/INC coordinate conversion 5: 200sets sub datum 6:Power off Memory; 7:Center of 1/2 8:Liner error compensation 9:Sleepping mode 10:Clear 200 sets Sdm datum; 11:ABS/INC mode 12:Calculator 13:Drilling of circumference 14:Drilling of oblique line 15:Machining of inclined plane 16:Machining of circular arc 17:Lathe function(match) 18:Rectangular lumen gradual processing 19:Digital filtering 20:Vibration filtering 21:Radius /Diameter fucntion 22: Lathe function 23: Big display(only for YH800-2S) YH800-2S Big Display Dro Digital Readout Display System Parameter 1.Voltage Range: AC 80V~250V/50HZ~60HZ 2.Acceptable Signal: TTL 3. : DB9 4.Acceptable resolution: 10um ,5um ,2um ,1um , 0.5um. 2 Axis Dro YH800-2S Parameters1. Travel (measuring) length: 0-1000mm / 0-40inch 2. Total (overall) length: Travel length + 140mm (0-1140mm) 3. : DB9 4. Resolution: 0.005mm(5u) 5. Input voltage: 5V 6. Grating pitch: 0.02mm (50LP/min) 7. Cable length: 3 Meter8. Normal size: About 22*34The Signal of 5uLinear Optical Ruler/Linear Glass Scales/Linear Encoder/Linear SensorPin 2 Black 0VPin 6 Green APin 7 Red 5VPin 8 White BPicture of 5U Linear Scales/Linear EncodersLathe/Milling Machine/Spark Machine/Cutting Machines and so on
- 1.Eliminate machine tool position errors caused by thermal expansion, deformation of the drive mechanics, pitch issues and more.
- 2.High long-term speed stability.
- 3.Sturdy construction and high resistance to vibration.
- 4.Finer signal periods offer highest interpolation accuracy.
- 5.Compact, lightweight and easy to install.
| ASIN | B0D4Y4T34F |
|---|---|
| Department | Unisex Adult |
| Item Weight | 0.353 ounces |
| Manufacturer | LIAMOS |
| Number of pieces | 1 |
| Assembly required | No |
| Item model number | 1005003891590895 |
| Package Dimensions | 1.18 x 0.79 x 0.39 inches |
